คุณสมบัติ | รายละเอียด |
|---|---|
| Coil Voltage | 24V dc |
| Contact Configuration | SPDT |
| Mounting Type | DIN Rail |
| Number of Poles | 1 |
| Maximum Input Voltage | 24V dc |
| Terminal Type | Screw |
| Switching Voltage | 36 V dc, 30V ac |
| Depth | 6.2mm |
| Height | 94mm |
| Length | 80mm |

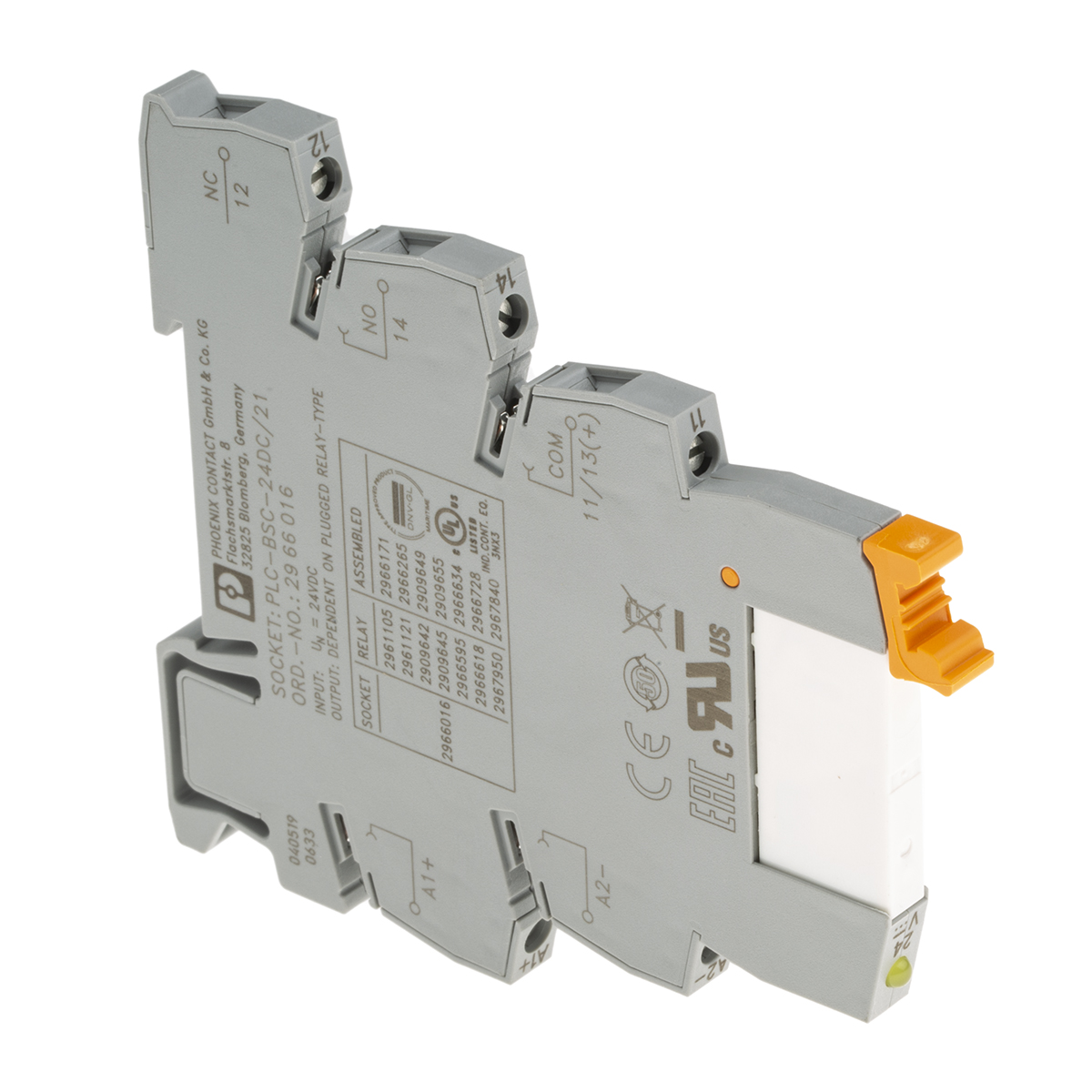

| Series | PLC-RSC- 24DC/21AU |
| Contact Material | Gold Plated |
| Input Current | 9mA |
| Turn Off Time | 8ms |
| Input Resistance | 2.66kΩ |
| Dimensions | 80 x 6.2 x 94mm |
| Maximum Operating Temperature | +60°C |
| Operating Temperature Range | -40 → +60°C |
| Minimum Operating Temperature | -40°C |
| Turn On Time | 5ms |
