ราคา / Price : 1 Reel of 50 Metre(s)
32,150.00 THB

จำนวนในสต็อก : 0 | out of stock
สินค้าหมดชั่วคราว (Temporarily out of stock) ไม่พร้อมจำหน่าย

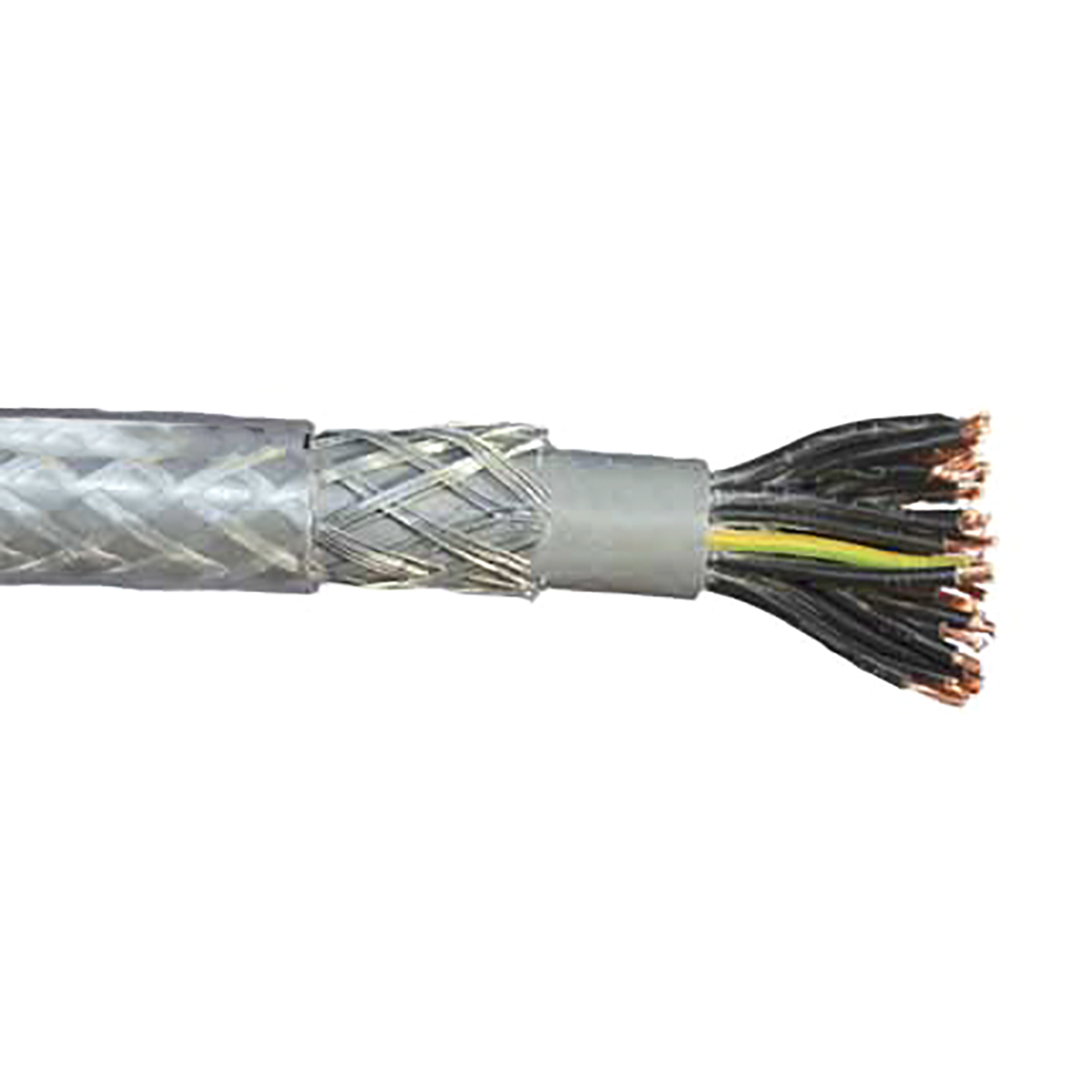

บริษัท เอเอพี (ไทยแลนด์) จำกัด - From Lapp, the Olflex Classic 110 series is a PVC control cable ideal for a variety of applications. Protected by braided steel wire, the cable has a high degree of mechanical resistance.


** ขอใบเสนอราคาติดต่อ ไลน์ไอดี (LineID) : pairin.aapthai
คุณสมบัติ
รายละเอียด
SeriesÖLFLEX CLASSIC 110 SY
Number of Cores25
Cross Sectional Area1 mm²
Screened/UnscreenedScreened
Length50m
Control Cable TypeSY
Sheath ColourTransparent
American Wire Gauge18 AWG
CPR CertificationEca
Outer Diameter18.1mm
Sheath MaterialPVC
Standards MetCE
Filler MaterialNon-Wicking Filler
Fire BehaviourFlame Retardant
Current Rating14 A
Conductor Resistance19.5 Ω/km
Earth CableYes
Conductor MaterialCopper
Minimum Bend RadiusFixed - 6 x D Occasional Flexing - 20 x D
Minimum Operating Temperature-40°C
Insulation MaterialPVC
Oil ResistantYes
Core Strands32/0.2 mm
Maximum Operating Temperature+80°C
Voltage Rating300/500 V
Bedding MaterialPVC
Screen TypeGalvanised Steel Braid
