คุณสมบัติ | รายละเอียด |
---|---|

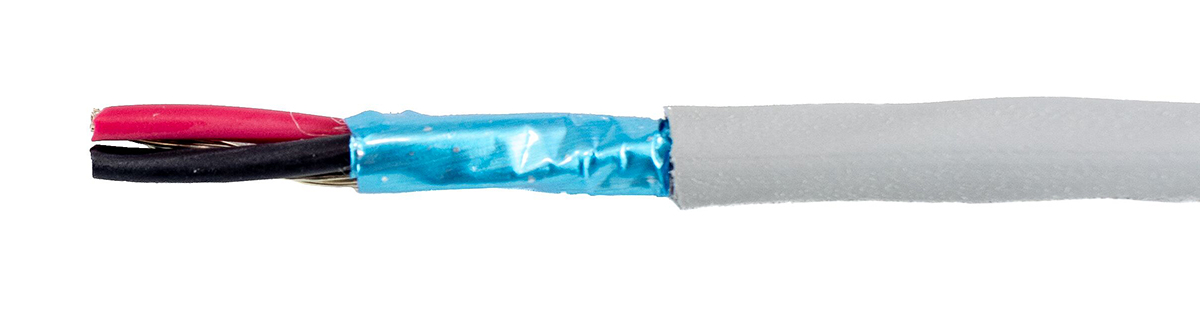

Series | Ecogen Ecocable Mini |
Number of Cores | 2 |
Cross Sectional Area | 0.15 mm² |
Screened/Unscreened | Screened |
Length | 30m |
Control Cable Type | ECO |
Sheath Colour | Grey |
American Wire Gauge | 26 AWG |
Outer Diameter | 2.69mm |
Sheath Material | mPPE |
Standards Met | CE, CSA, UL |
Core Strands | 19/0.102 mm |
Conductor Material | Tinned Copper |
Minimum Bend Radius | 10 x Diameter |
Maximum Operating Temperature | +80°C |
Screen Type | Foil |
Drain Wire | No |
Insulation Material | MPPE |
Fire Behaviour | Halogen Free |
Minimum Operating Temperature | -40°C |
Voltage Rating | 300 V |
CF140.03.05.UL
83305E 009100
